On "UPTC" OOO machining of metals is one of the most important areas of work.
Mechanical manufacturing includes:
- blank section
- turning and milling section
- section with CNC machines
- heat treatment phase
- grinding area
- welding division
- washing area
- packing area
- quality control department

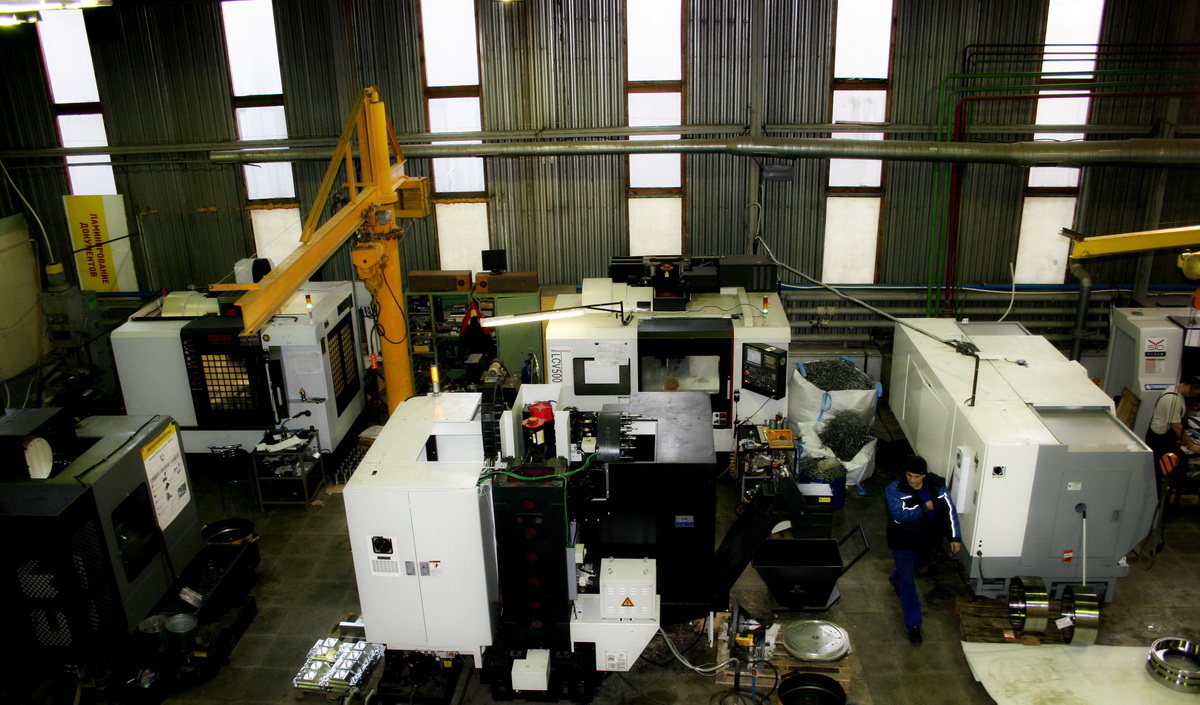

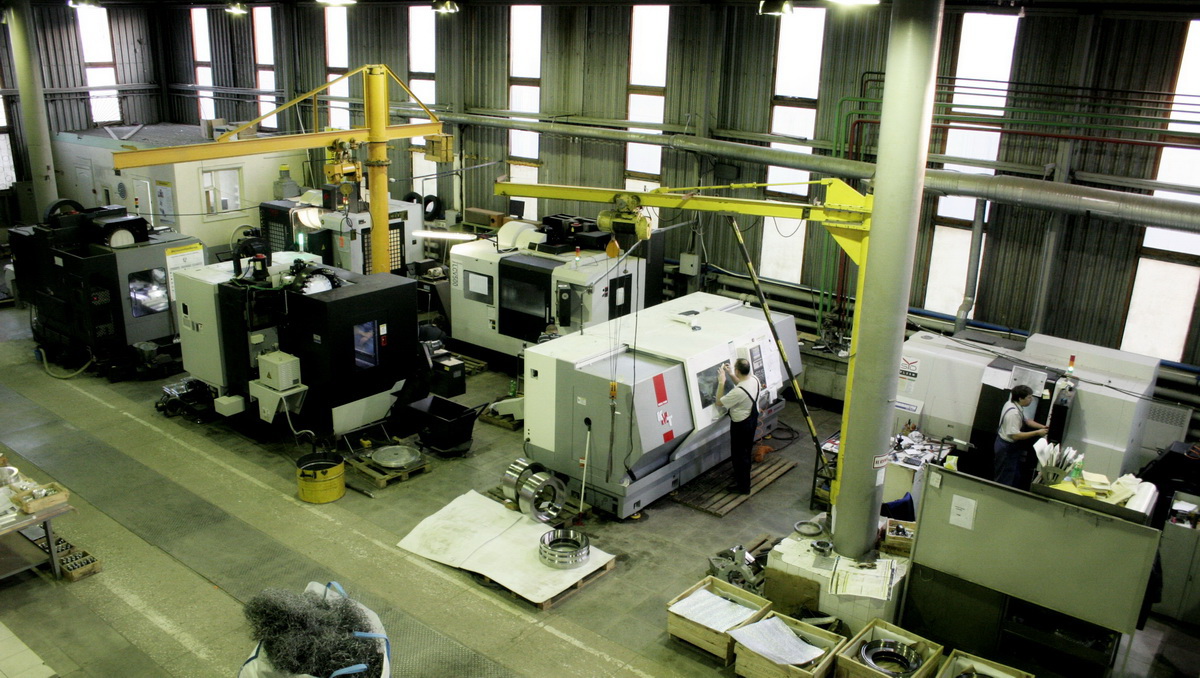

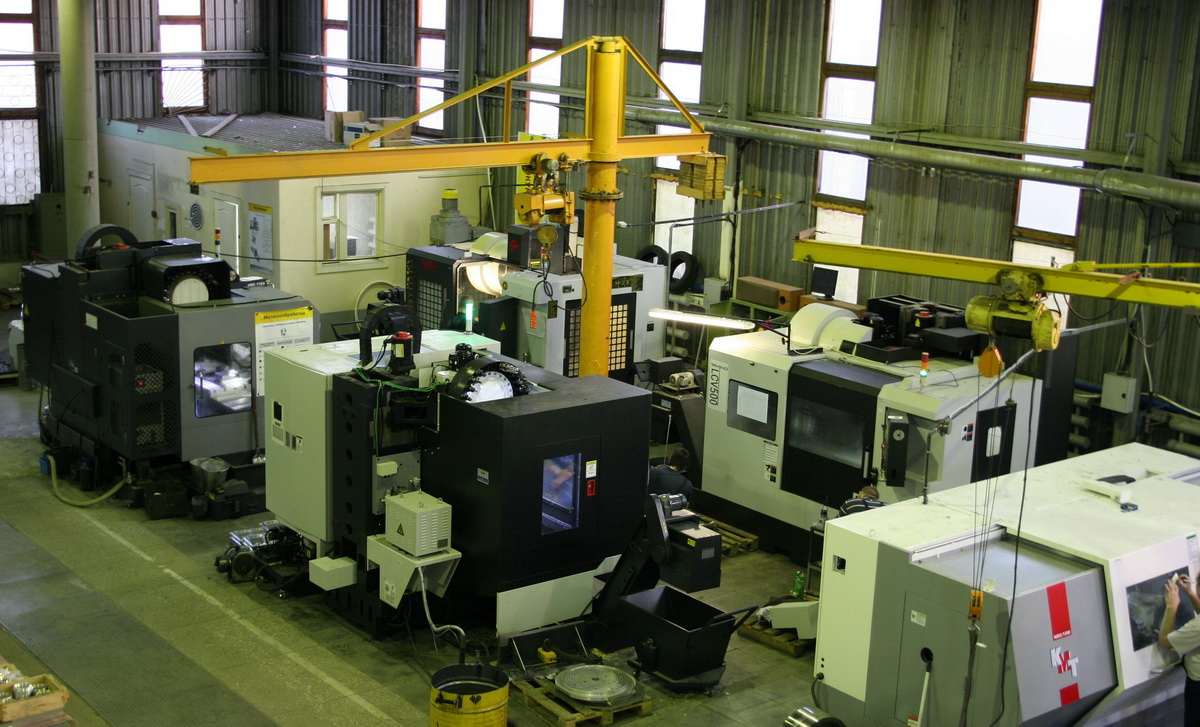

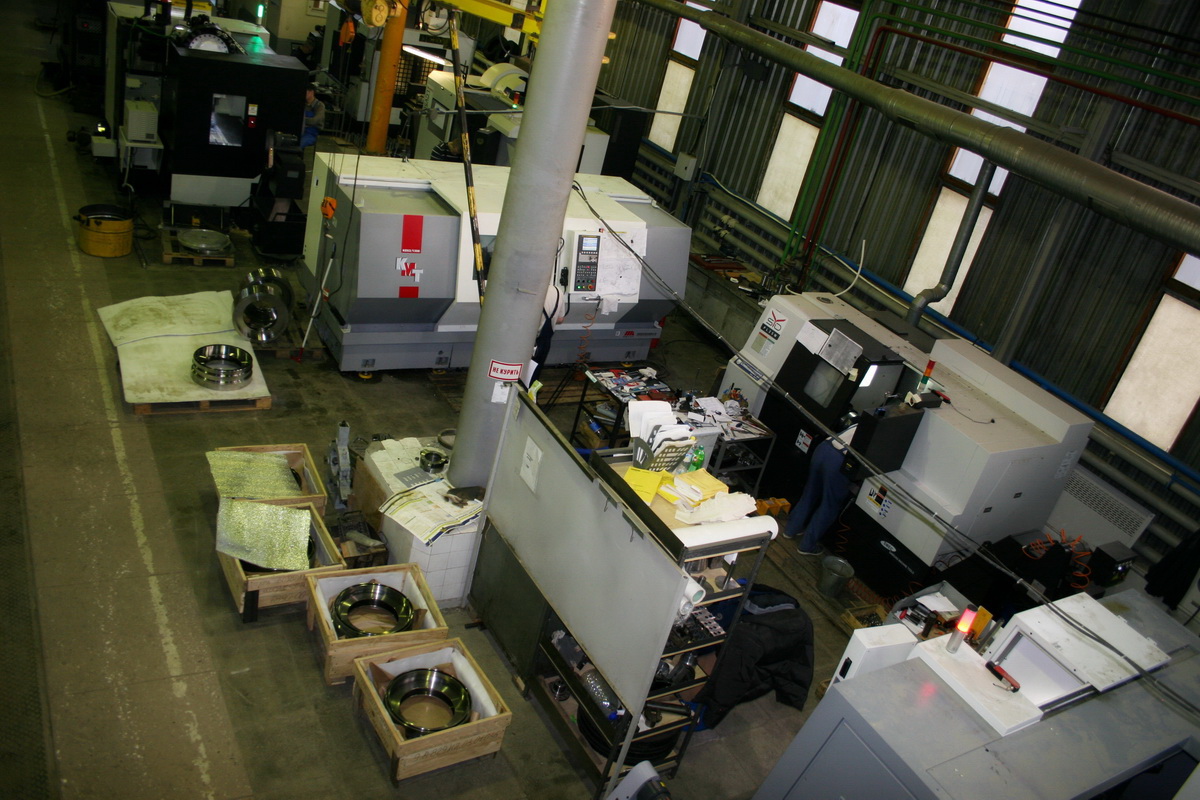

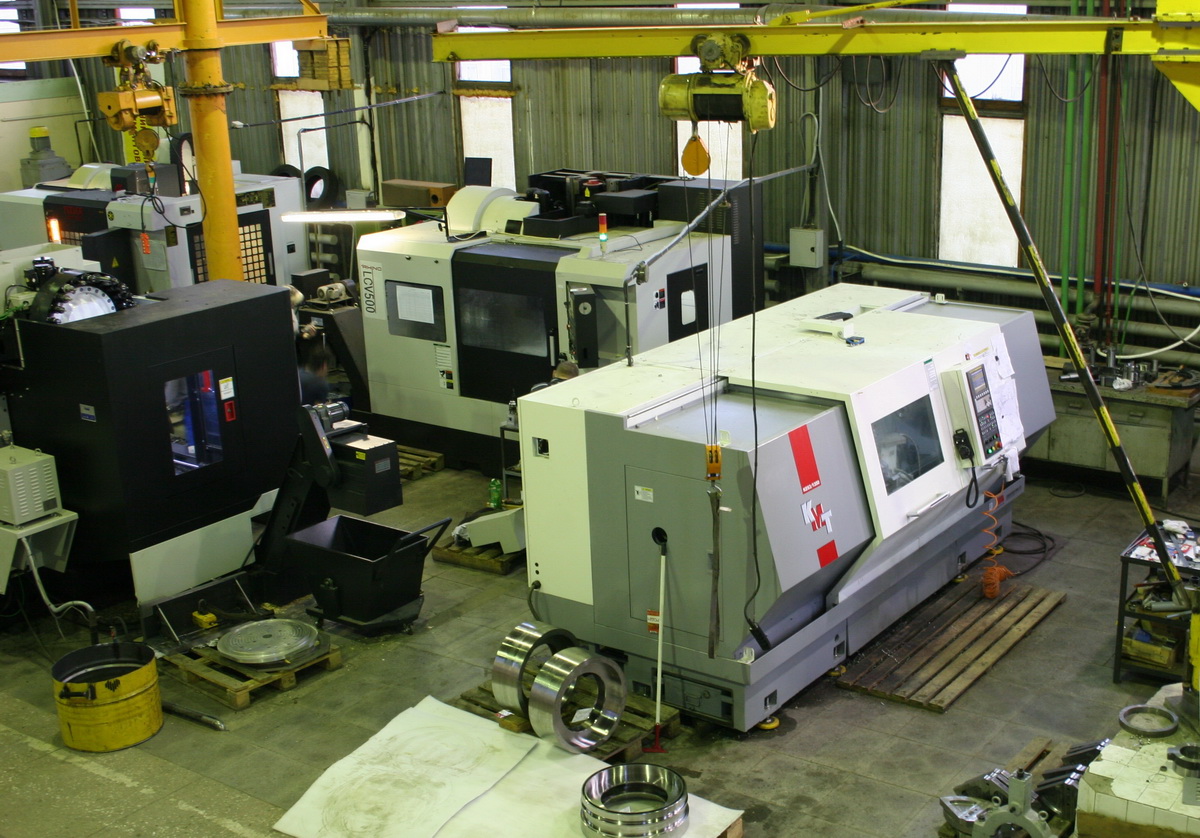

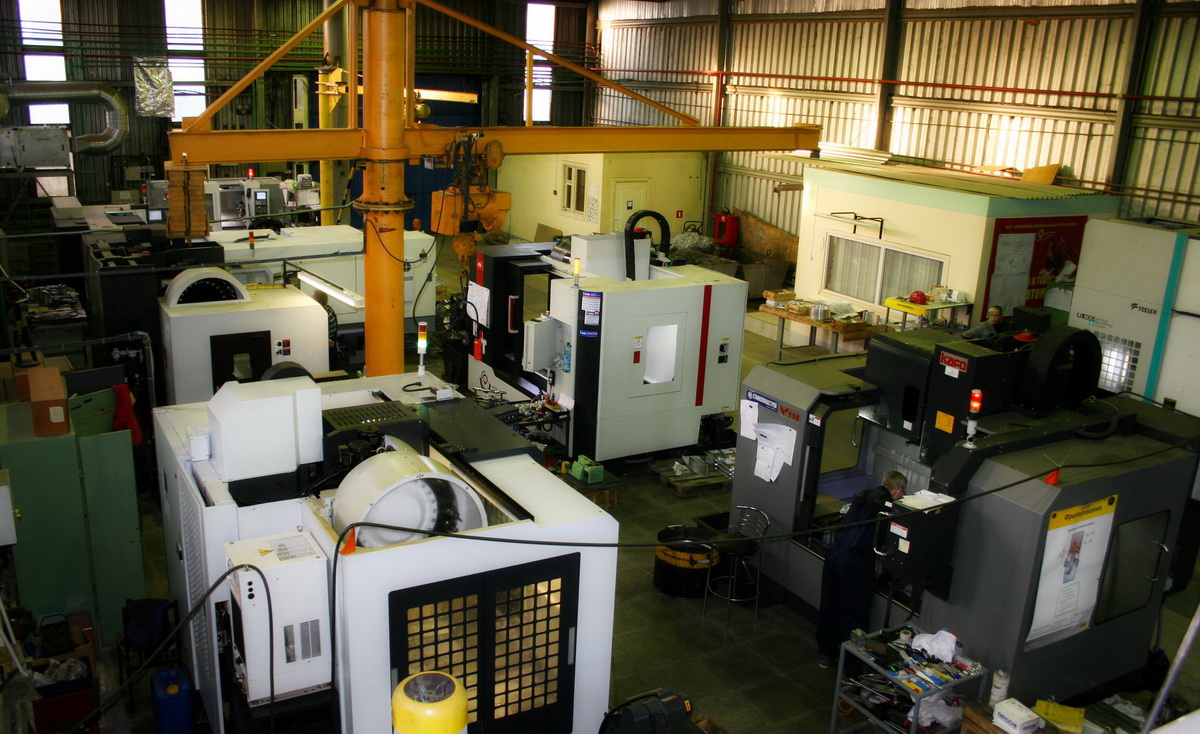

Our company is equipped with a modern park of machines, which is based on modern lathes and milling machines with numerical control. In addition to CNC machines, the company uses a wide range of other technological equipment: turning, boring, milling, planing, gear processing, grinding, slotting, welding, heat treatment.
Thanks to highly qualified specialists, the use of a wide range of equipment, following all accepted standards and quality control of products at all stages of production, the company performs a full cycle of manufacturing details with proper quality and in time.
Our enterprise manufactures assembly units and accessories for different branches of mechanical engineering and accepts orders both for single and batch manufacture of articles from steel, aluminium, titanium, copper, brass and other nonferrous metal alloys.
Engineering capability of our equipment:
| № | Type of machining | Main dimensions | Notes | |
|---|---|---|---|---|
| 1 | Metall cutting on contour band machine |
Max ∅ = 330 mm Max ∅ = 250 mm |
Contour band machines: Cosen SH-500M Cosen SH-1016JA |
|
| 2 | Lathe |
Min ∅ = 1 mm, Max ∅ = 1000 mm, L = 5000 mm |
Component weight is up to 2 tons Big fleet of machines |
|
| 3 | Milling | Max dimensions 1100х300х400 mm | Depending on table stroke size | |
| 4 | Coordinate boring | Max dimensions 400х630х270 mm | Depending on table stroke size Weight is up to 320 kg |
|
| 5 | Flat grinding | Max dimensions 1000х350х250 mm | ||
| 6 | Cylindrical grinding | Max ∅ = 300 mm, L = 1000 mm | ||
| 7 | Inner grinding | Min ∅ = 20 mm, Max ∅ = 200 mm | L = 200 mm | |
| 8 | Gear hobbing |
Max ∅ = 800 mm, H = 400 mm |
Min m = 3, Max m = 8 |
|
| 9 | Slotting | Component height is up to 500 mm max | Max stroke: 320 mm | |
| 10 | EDM wire-eroding |
Max dimensions of table 415х635 mm, H = 300 mm |
Power stroke: max 500х500 mm |
|
| 11 | Lathe milling with CNC |
2 axis lathe Max ∅ = 125 mm, L = 650 mm |
||
| 12 | Lathe with CNC |
2 axis lathe Max ∅ = 500 mm, L = 650 mm |
||

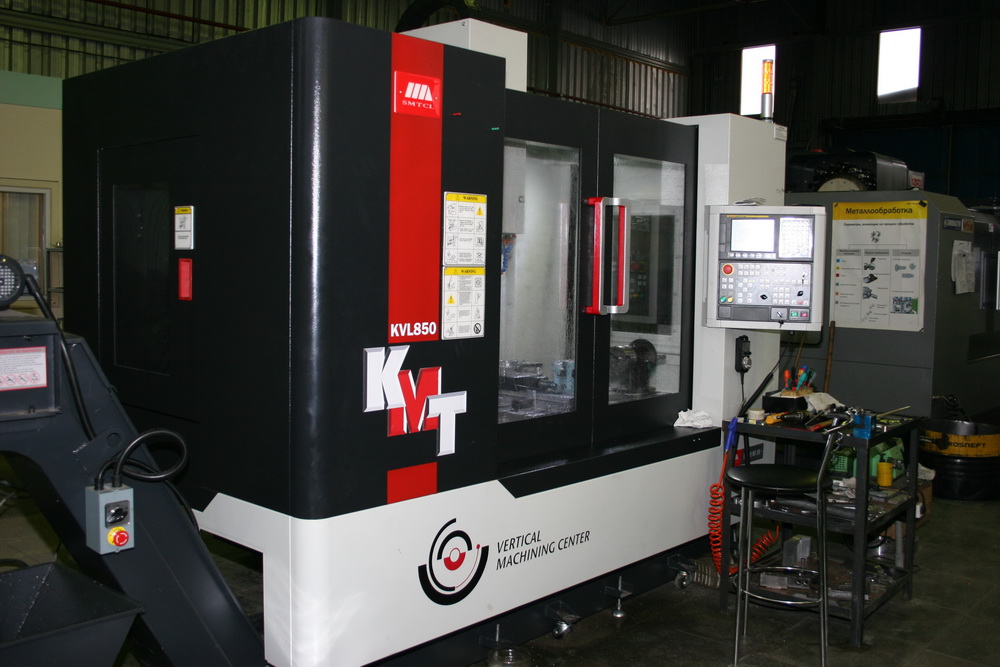

| 13 | Milling machining centers with CNC - 4 machines | 3 axis Max dimensions 700х700x400 mm |
Max weight is 700 kg positional accuracy is ±0,01 mm |
|
| 14 | Milling machining center with CNC | 5 axis Max ∅ = 630 mm |
Max weight is 500 kg positional accuracy is ±0,01 mm |
|
| 15 | Welding |
Argon arc welding: chamber for welding of titanium and stainless steel products in argon and other inert gases |
source LORCH40 | |
| 16 | Heat treatment |
Electrical furnace hearth (Т is up to 1100°С) - 450х450х1400 mm Electrical furnace shaft - Max ∅ = 600 mm, L = 900 mm (with the possibility of heat treatment in the environment of protective gases, as well as cementation) |
||
| 17 | Galvanics | According to customer's reference design | ||
